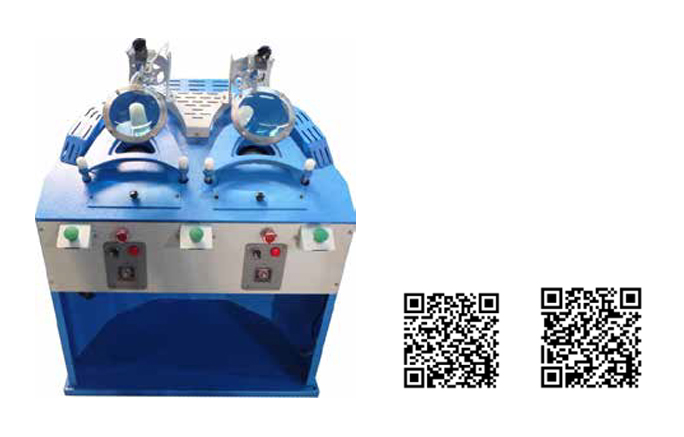

VAMP STRETCHING MACHINE PR 1430/D

To check defects in the toe area by applying pressure
Best suited for patent leather
  • This machine is used to inspect leather vamp components
  • Firm clamping of leather
  • Any Defect on the leather is highlighted when Leather is pulled over a Aluminium mould
  • Machine operates on Pneumatic system
  • Can be custom built as per request
Technical Data
Voltage 240v-AC
Power 0.1Kw
Air Power 6 Bar
Machine weight 80 Kg
Gross Weight 100 Kg
Dimension 900x460x1220
Packing Dim 1050x610x1370
