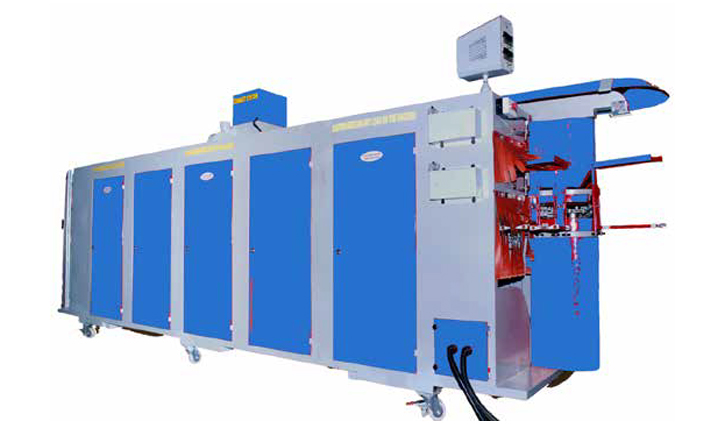

MEGA DRYIER-RINK SYSTEM PR 1155/MD

Specially designed conveyor enables the sole and shoe/boot to travel in pairs.
Compatible to rink system.
  • Reduced Drying time of 3-4 minutes against the conventional drying time of 25-30 minutes
  • In the chamber Machine first dries the precoated adhesive with the help of Forced hot air
  • Then with the help of Short wave infrared reactivation lamps it reheats the content on the sole and lasted upper in quick time. This way it prevents excessive softening of the sole.
  • The unique feature of the machine is, it reduces the last requirement and throw put time significantly.
  • Power Mode Selection system is provided to set the machine as per requirement
  • Special Trolley with separate provision for sole and Lasted upper
Technical Data
Voltage 415v-AC
Power 22 Kw & 10Kw/hr
Machine weight 850 Kg
Gross Weight 1000 Kg
Dimension 1200x5800x1650
Packing Dim 1350x5900x1800
