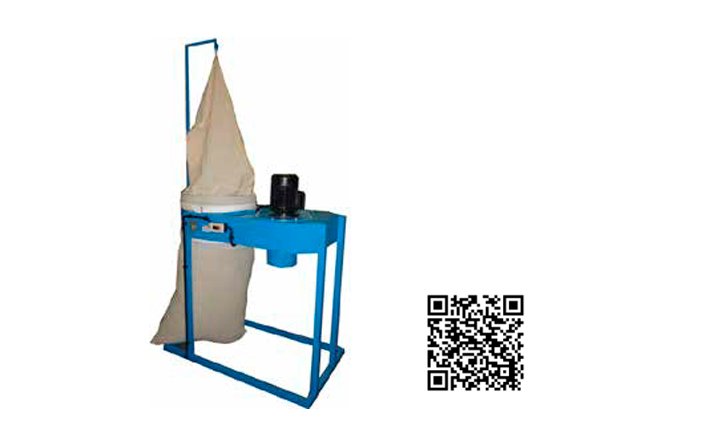

DUST COLLECTOR-SINGLE PR 1240/S1

Used as suction unit in Full shoe and sole plant,Leather goods Edge roughing area
  • 1 Hp High speed motor(2800RPM)
  • High efficiency Aluminium Impeller
  • Impeller Dynamically balanced to reduce vibration and noise.
  • Cyclone dust separator to Collect the Dust particles
  • Micron Porous cloth bag filter to filter the fine dust
  • Suction Inlet Size as per Customer Requirement( 6"&4" )
Technical Data
Voltage 415v~AC
Power 0.76Kw
Machine weight 50 Kg
Gross Weight 85 Kg
Dimension 1125x520x1585
Packing Dim 1275x670x1735
